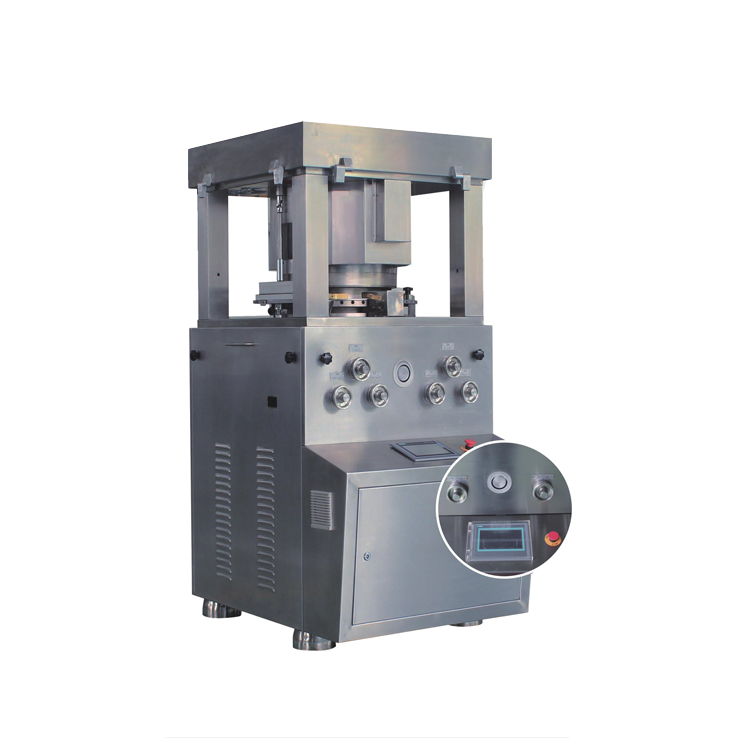

Home » Products » Tablet Press Machine » GZP420i Double Discharging Rotary Tablet Press
Equipment performance
Has a preloading function
Adopts PLC programmable control
Man-machine interface, easy to operate Shows the main pressure, fillling volume, slice thickness, speed, output
With overpressure alarm function
Using quantitative lubricating function
Feeding methods, forced feeder
Tablet pressing chamber meet GMP requirements
Technical parameters
|
參數 |
Data |
GZP29i |
GZP37i |
GZP39i |
GZP45i |
|
沖桿直徑 |
Punch Diameter (mm) |
26 |
22 |
22 |
10 |
|
最大壓片直徑 |
Max Tablet Diameter (mm) |
22 |
12 |
12 |
10 |
|
最大轉速 |
Max Rotation Speed (r/min) |
40 |
40 |
40 |
40 |
|
最大填充深度 |
Max Filling Depth (mm) |
18 |
18 |
18 |
18 |
|
最大產量 |
Max Production Capacity (pc/h) |
139200 |
177600 |
187200 |
216000 |
|
最大主壓力 |
Max Main Pressure (kn) |
80 |
80 |
80 |
80 |
|
最大預壓力 |
Max Pre- pressure (kn) |
15 |
15 |
15 |
15 |
|
主電機功率 |
Main Motor Power (kw) |
4KW |
4KW |
4Kw |
4Kw |
|
設備占地面積 |
Machine Area (mm) |
850x 1100 |
850x1100 |
850x 1100 |
850x1100 |
|
設備高度 |
Machine Height (mm) |
1750 |
1750 |
1750 |
1750 |
|
設備重量 |
Machine Weight (kg) |
2050 |
2050 |
2050 |
2050 |
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
That machine is a single press automatic rotation for shape-pressing equipment, which have the function of press the grains material to be round or irregular shape tablets, such as candy, calcium tablets double-sides with letter printing and etc. which widely suitable for the Industries of pharmaceutical, Chemical, Foodstuff, Plastic Electronic, Powder Metallurgy and so on.
Learn More
This machine is a single-press type, continuous automatic tablet press for pressing the granular raw material into the round tablets and irregular tablets etc. It is especially caters for small-batch production.This machine is mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.In addition, it is equipped with the overload protection devices. The powder absorbing box is installed on one side of the machine. It can absorb the powder from the operation of the machine via suction port to avoid bonding and clogging, and it also can recycle the raw material for reproduction.
