Feature
u The main transmission part is adopted with swinging pin-wheel, long life, lower noise, and stable running
u Adjustable stroke can be suitable for various packaging, especially ofr the production requirements of small batch and various kinds of products
u Flat plate structure, can pack some special shaped prodducts, such as elliptic shape, square shape, triangle shape etc
u PVC and Alu Foil adopt motor transportation, sensor control, transportation steady
u 140B-I model machine is suitable for ALU/PVC and ALU/ALU,equipped with special feeder,automatic rejection device
Main technical parameter
u Cutting frequency (times/min) :6-36
u Capacity(10 thousand pcs/h):2-11
u Max.forming area and depth (mm):140*110*14
u Stroke:40-120mm(can be manufactured as user's requirements)
u Standard plate:80*57mm(can be manufactured as user's requirements)
u Air pressure:0.4-0.6MPa
u Air supply:≥0.2m3/min
u Total power:380V/220V 50Hz 3.6Kw
u Main motor power:1.1Kw
u PVC hard pieces (mm):0.15-0.5*155
u PTP Aluminum Foil (mm):0.02-0.035*155
u Dialysis paper (mm):50-100g*155
u Mould cooling:tap water or recycling water
u Machine overall size:2300*500*1410mm
u Machine Weight:600kg
Welcome to our website! Please send your words at any time in the following form and ask us, we will contact you and provide you with the corresponding service as soon as possible. Please write in English.
This advanced high-tech XSJ Series Fish Food Blister Packaging Machine is innovated with success to meet the needs in the market by our own research, fellows. It's mainly suitable for packing red worms(akamushi), eelworm, artemia. baby shrimp etc. have been patented by the state patent administration. Its patent number is 200610008264.77. This machine has two models, model 250 and model 140. It is integrated mechanic, electric, pneumatic technologies. All the operations are controlled through signals sent off by the sensor switches. It's equipped with PLC program, simplifying the construction, making the blister locking synchronize with it to achieve the feeding the pet fish food. The packed food won't be destroyed in its cells and nutrients, and the products won't be deteriorated in the fridge at 18 below zero for within two years, which can keep the proteins and vitamins in the food from losing, keeping its sound performance of returning to water.
Learn More

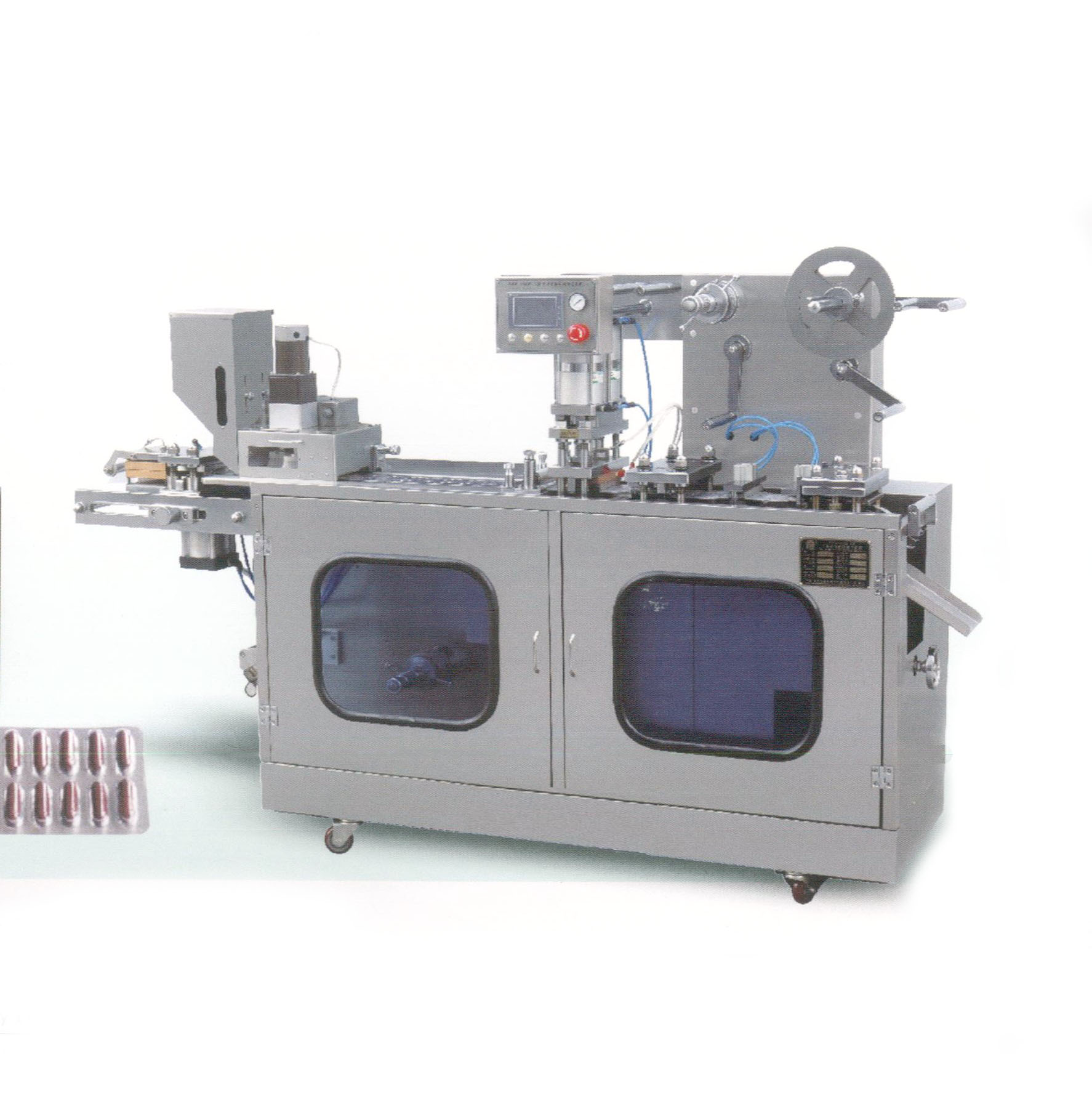

This machine adopt PLChuman Interface, frequency speed regulation, high automation, easy operation. Suitable for tablet, capsule etc AL/PVC, Paper/PVC package. It conforms to"GMP""CE"Requirement.
Learn More

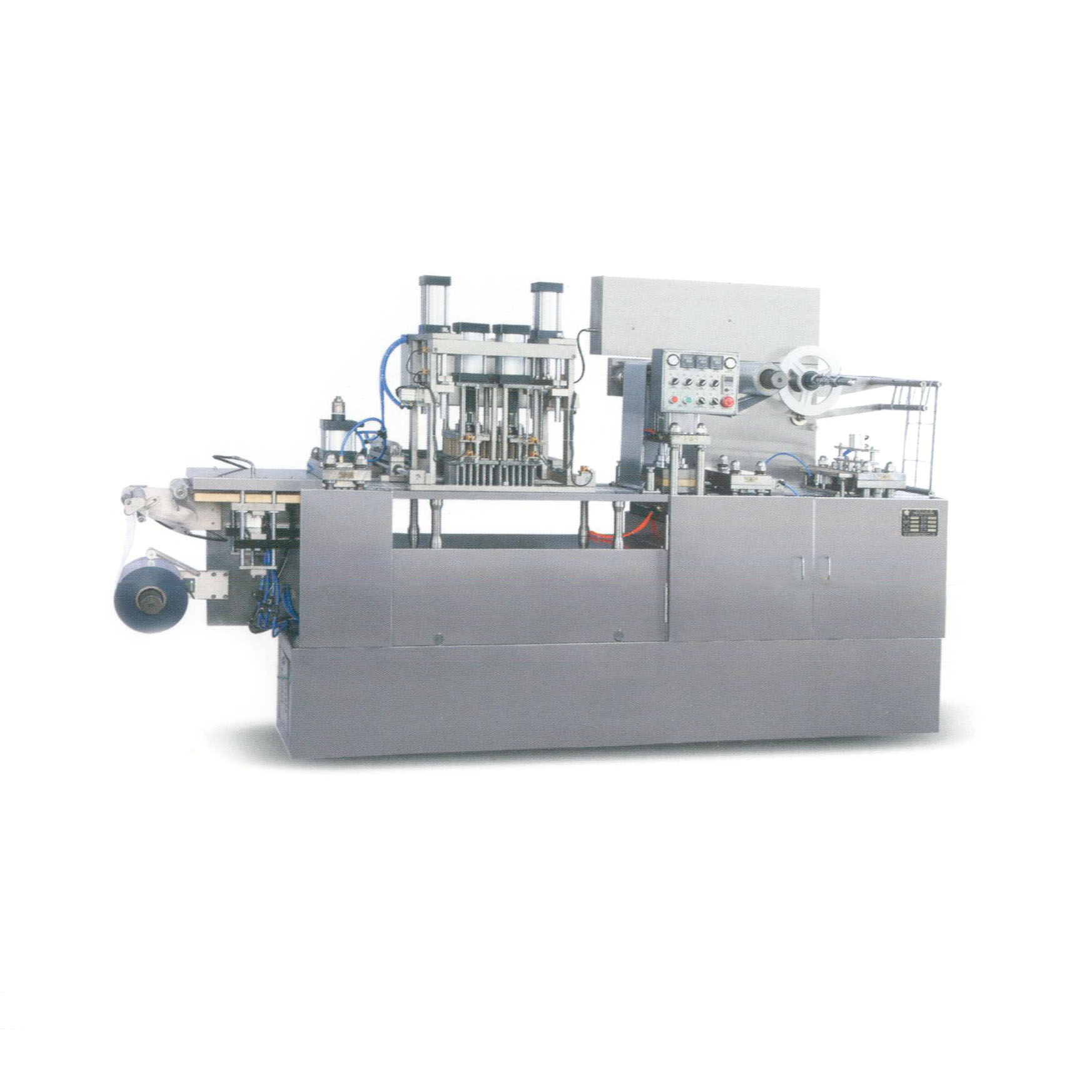

This machine is designed by requirement of "big sheet, deep bubble", it's suitable for packing capsule, tablet, penicillin bottle, oral liquid, candy and irregular shaped AL/PVC, PVC/PAPER package in medicine, food, electronic, medical instrument etc industries, also suitable for health porducts, light industries package.
