Feature

u Equipped with inductive self-checking mechanism, it can eliminate the waste plate with lack pf particle,the qualified rate reaches 100%.

u The heat sealing station is fixed,the distances between forming,perforation and punching etc. Units can be adjusted freely on the same plane and it is suitable for all kinds of dimensions with high precision, strong adaptability.

u Main sransmission adopts imported gear reducer, with excellent performance, lower noise, long life, stable operation.

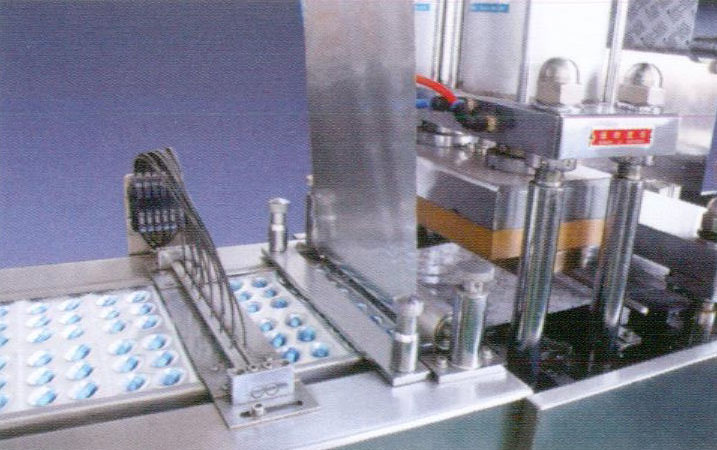

u Flat structure, registration heating, mechanic (positive pressure) forming, up and down net web, cylinder heat-sealing, manipulator draw, adjustable stroke, lower noise and steady of operation.

u Cursor tracking register, sealing with tidiness and good-looking appearance.

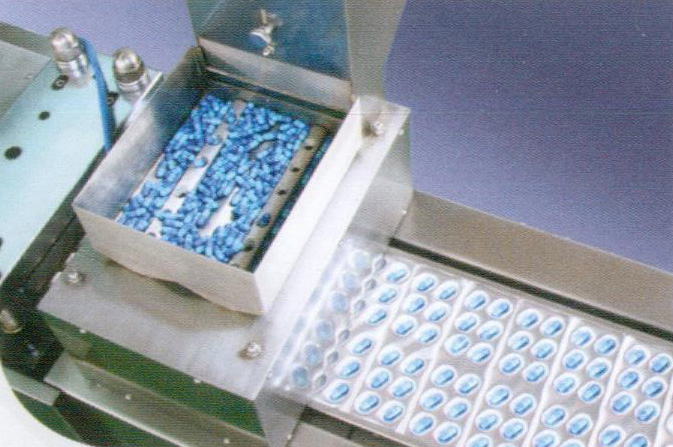

u Different feeder type as per different products

Main technical parameter

u Cutting frequency (times/min) :Hardness aluminum 6-35;AL-plastic/paper-plastic 6-50

u Capacity(10 thousand pcs/h):AL-AL≤11  AL-plastic≤23

u Max.forming area:AL-AL 240*150*14mm；  AL-plastic 240*150*14（26）

u Stroke:40-160mm(can be manufactured as user's requirements)

u Standard plate:80*57mm(can be manufactured as user's requirements)

u Air pressure:0.4-0.6MPa

u Air supply:≥0.3m3/min

u Total power:380V/220V 50Hz 6.2Kw

u Main motor power:1.5Kw

u Forming Aluminum:0.085-0.1*260

u PVC hard pieces:0.15-0.5*260mm

u PTP aluminum foil:0.02-0.035*260mm

u Dialysis paper:50-100g*260mm

u Mould cooling:tap water or recycling water

u Machine overall size:3100*720*1600mm

u Machine Weight:1600kg
